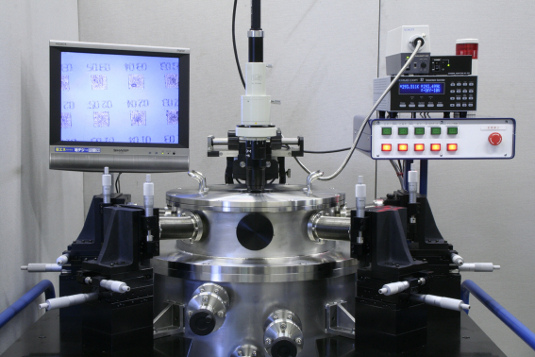

GRAIL 10-HVT-X
I realized the high temperature measurements,the high-voitage environments.
Applications
Power device measurement(Sic,Diamond etc)
Specification
| Item | GRAIL 10-HVT-X |
| Equipment configuration | Power device prober main unit 1 set |
| Prove body outline dimensions | 960(W)×720(D)×600(H) |
| Weight | Prober main unit：150Kg around |
| Cooling method | N2 gas circulation（for return to room temperature） |
| Measured temperature range | RT～573K |
| Withstand voltage measurement Withstand current measurement |
3kV, Pls20A |
| Possible measured Area | <25mm x 25mm |
| Probe mobility | X-axis:±25.0mm Y,Z-axis:±12.5mm |
| Temperature Stability | Within ±1.0 :RT～573K |
| Measurement noise | < ±1pＡ(at room teperature 40V) |

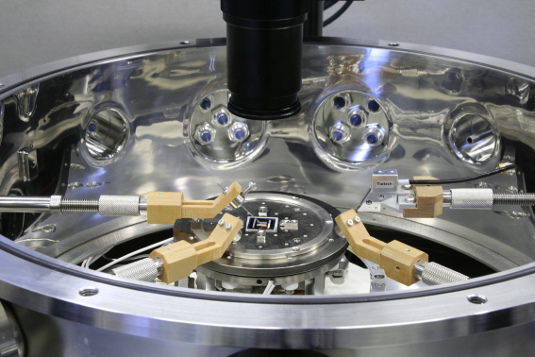

| Probe head | 0～6 pieces *1 |
| Sample Stage mobility | No transferring machanism |
| Signal connector | MHV(SHV)connector x (probe quantity+2) *2 |
| Options that can be mounted etc... *3 | High-frequency wave kit *4 |
*1) I represents the number of portions of the "X"
*2) +2 is for the back gate
*3) There is a casa where the basic specifications are subject to change
*4) Also available to special specifications
